The South Building

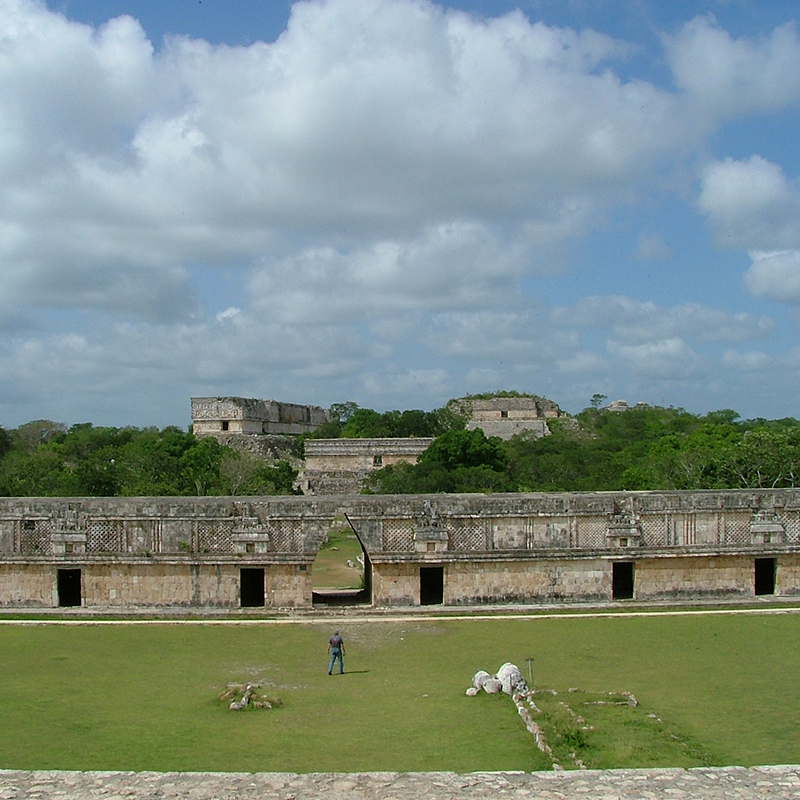

This photo was taken from the elevated platform of the North Building
The South Building Arch provides a grand ceremonial entrance into the Quadrangle, and frames views looking into the Quadrangle, as well as views looking out. The South Building, as the ceremonial entry point into the Quadrangle, occupies the lowest elevation of all four buildings. The platforms of the East and West Buildings are even with the bottom of the frieze of the South Building, and the North Building rises above everything else.
The Quadrangle is especially noted for the way Chan-Chak-K'ak'nal-Ahaw [Lord Chac] integrated its levels and building lines. This coordination of scale and architectural detailing included not only the internal view, but also the vista over the South Building toward the House of the Governor and the House of the Turtles, and over the East Building toward the Pyramid of the Magician.

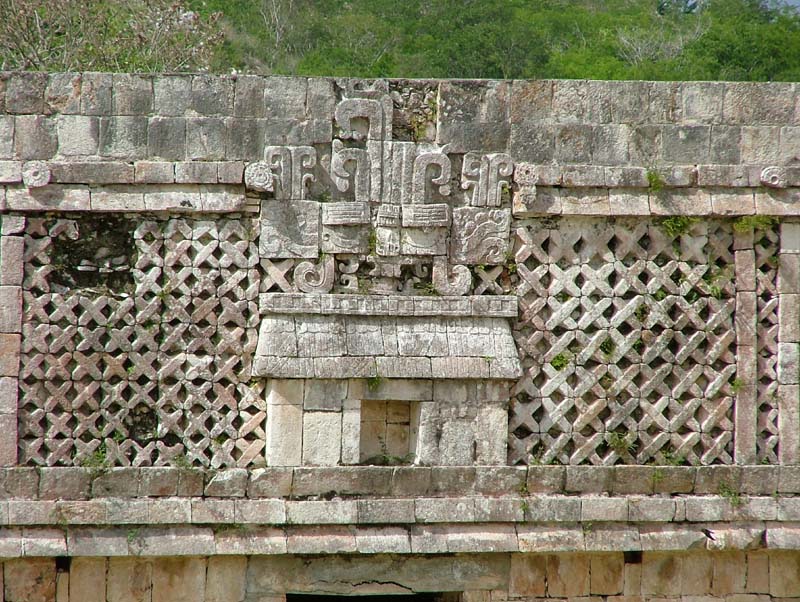

Maya hut over each doorway
The south frieze features a stylized Maya hut above each doorway.
The wide frieze of the South Building is very sober, with some stylized huts, dominated by large masks, placed in a "latticework" frame."
Paul Gendrop, Rio Bec, Chenes, and Puuc Styles in Maya Architecture, p. 194
Primal myths of Maya culture
The intricate iconography of the frieze references primal myths of Maya culture. Schele & Mathews discuss this iconography, writing in part:
Each of these sculptures consists of a thatched-roof house called a xanil nah by the modern Maya. The depiction of the thatch shows some of its strands blown by the wind...
Each house in front of the lattice has a zoomorphic monster head on top of the roof, just like a roofcomb in temple architecture. The features of the face are anonymous, but maize foliation grows from the top of the head. The maize reminds us of Palenque, Copan, and Tikal, where texts mention houses called Na Te'K'an, "First Tree-Precious."
At Palenque and Copán, the actual houses survive and show us that the maize tree represents the reborn Maize God and the place where the gods formed the first human beings from maize dough. We think the maize houses on the South Building convey the same meaning. The South Building represents the house where the first people were made, and where their descendants remember First Father in his guise as a maize plant.
Schele & Mathews, The Code of Kings: The Language of Seven Sacred Maya Temples and Tombs, p 265

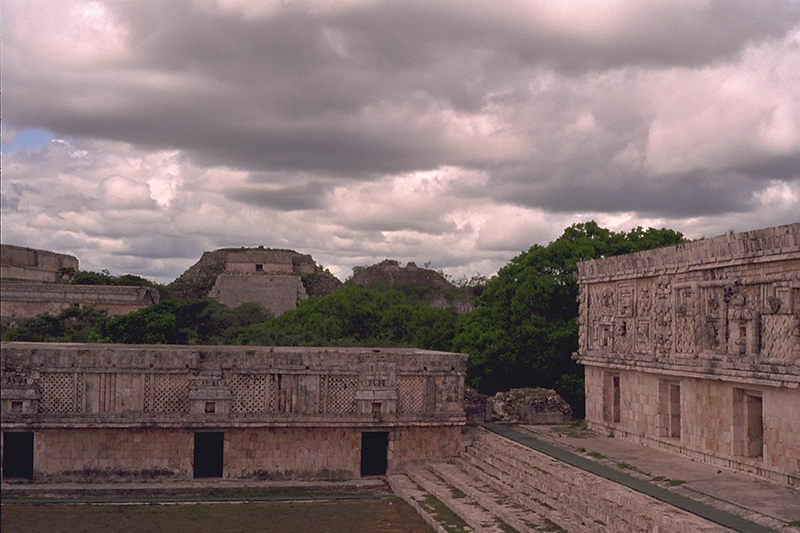

Movement is upward toward North Bldg
Stairway leading to the East Building's platform
The stair leading up to the East Building platform is interrupted with small stage areas which might have supported elaborate ritual performance or dance. The West Building does not have these areas.
A cardinal objective of the American Indian architect in all periods and regions was to achieve differentiation by height. The ceremonial centers and the cities display a multiplicity of level that probably distinguished hierarchic rank of the vague functions to which the edifices were dedicated.
Kubler, Studies in Ancient American & European Art, p. 249
Ritual activity, processions & dance
Stairway leading up to West Building
Differences in elevation of buildings supported ritual activity, processions & dance.
Starting with the South Building at the lowest level, the East and West Buildings are elevated so that the bottom of the South Building's frieze is level with the platforms these building rest upon and the top of the South Building is level with the bottom of their friezes.
In turn, the North Building is elevated so that its platform is level with the bottom of the East and West Building friezes.

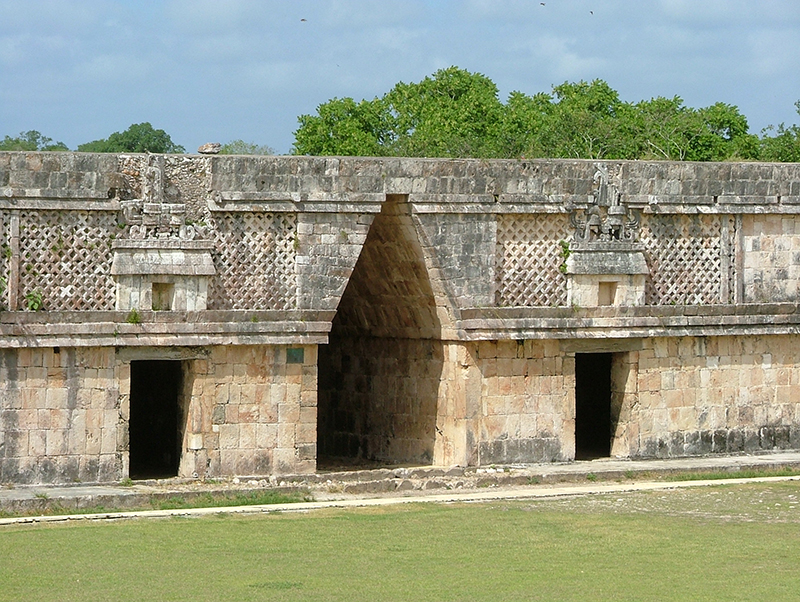

Red handprints on arch interior
The formal entrance to the quadrangle is through a large corbeled arch in the center of the South Building. It is also possible to enter the quadrangle from any of the four corners because the buildings are not attached to each other.
There are remains of red handprints on the interior of the arch.
Dramatized Procession & ritual

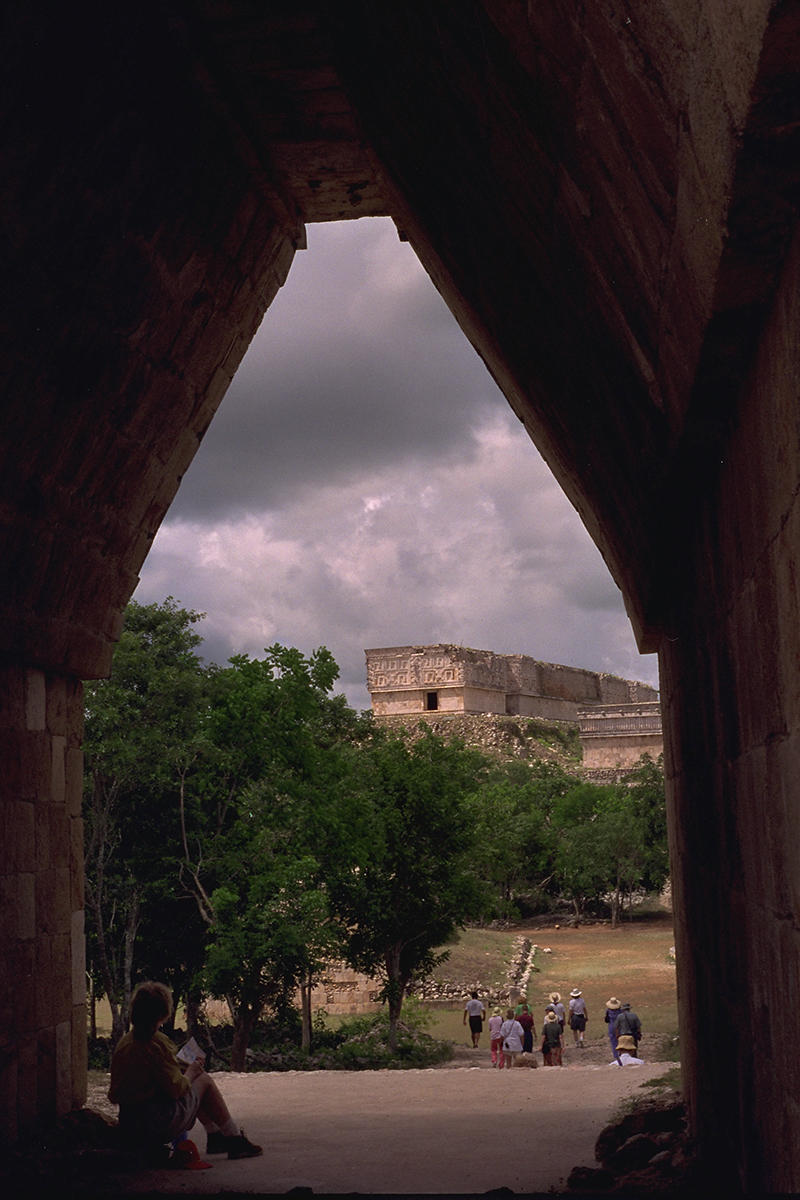

The arch shaped and dramatized movement into and out of the Quadrangle.
The builders marked this ceremonial entrance with a towering corbeled arch that funneled elaborate processions into the courtyard.
It acts as a huge frame focusing on the North Building of the Quadrangle from the outside looking in, and on the House of the Governor from the inside looking out.
Linda Schele & Peter Mathews, The Code of Kings: The Language of Seven Sacred Maya Temples and Tombs, p. 260-261.

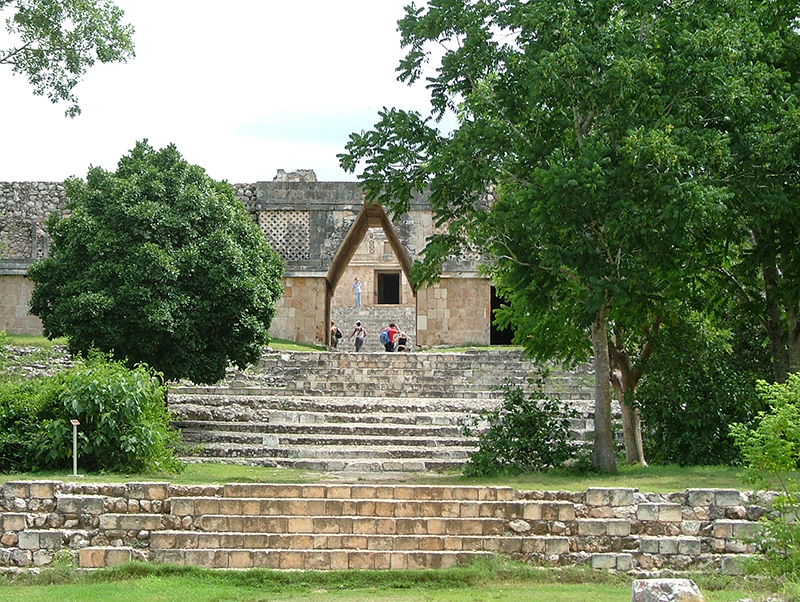

Entry into Quadrangle
The approach into the Quadrangle is equally dramatic. Three exterior sets of stairs lead up to the Arch, then an interior staircases rises to the central door of the North Building.

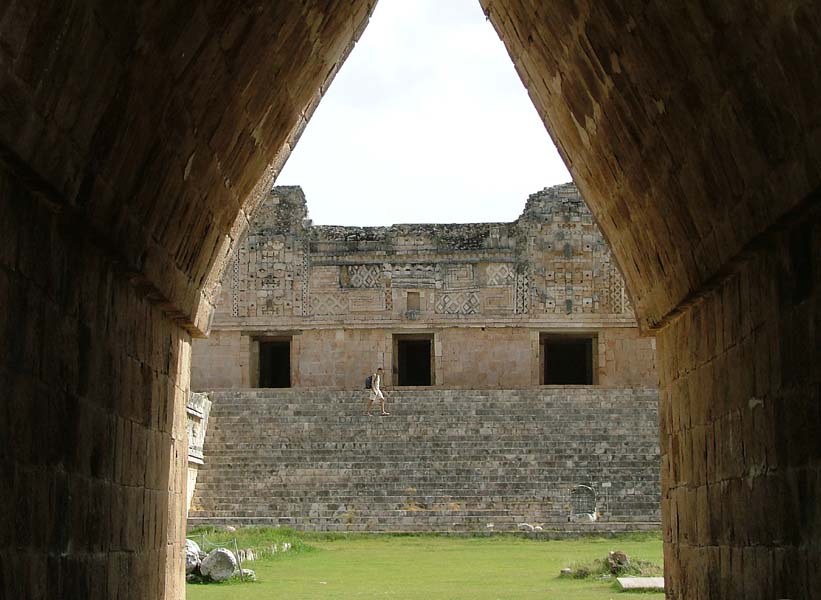

The Arch frames the North Building
The Arch highlights and frames the stacked mask towers, stylized huts, frets, and "lace" panels displayed on friezes of the North Building.
